Mono amplifier 2 - 8 Ohm stable

Bridged 4 - 16 Ohm stable

​

Minimum output @ 14.4 Volts

​

8 Ohm - - 160 Watts RMS @ 0.1% THD

​

6 Ohm - - 200 Watts RMS @ 0.1% THD

​

4 Ohm - - 300 Watts RMS @ 0.1% THD

​

2 Ohm - - 380 Watts RMS @ 0.1% THD

​

Typical output 4 Ohm @ 200 Watts RMS 0.0034% THD

​

Signal to noise ratio A/W  -  Full Power  -  > -105dB

​

Frequency response 12Hz-100KHz (-1dB)

​

Input impedance  -  33K Ohms

​

Input sensitivity  -  0.3V - 8V

​

Idle current  -  + -3.1 Amps

​

Thermal cut out  -  80 Deg C

​

Internal fuse rating  -  2 x 30 Amps

​

DC protection cut off  -  > 9.00 Hz

​

Dimensions

(H) 64mm x (W) 378mm x (D) 339mm

​

Weight

7.2kg

​

Available in Black or White chassis

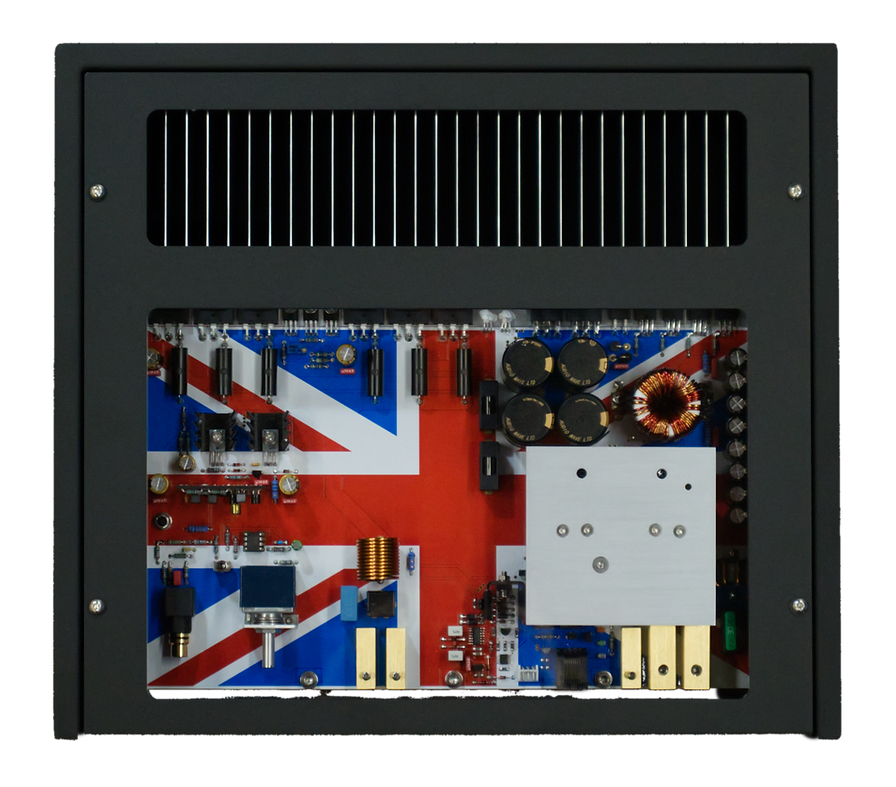

Available in Black, White, Gold, UJ Flag or US Flag PCB's

​

Audio Wave Ltd reserves the right to change or modify its products without notice.
